What steel gauge should window bars be?

11-gauge (3.0mm thick) is the minimum for genuine burglary resistance. Lower-cost bars often use 14-gauge (2.0mm) or 16-gauge (1.5mm), which can be cut with bolt cutters in under 30 seconds. SWB bars use 11-gauge steel throughout.

What is the difference between 11-gauge and 16-gauge steel?

11-gauge steel is 3.0mm thick; 16-gauge is 1.6mm thick. The 11-gauge bar has nearly twice the cross-sectional steel. In practical terms: 16-gauge fails under 150 lbs of lateral force; 11-gauge requires over 800 lbs to bend. Only 11-gauge reliably exceeds the 60-second burglar abandonment threshold.

Can bolt cutters cut through window security bars?

It depends on gauge. 16-gauge and thinner bars can be cut with standard 24" bolt cutters in under 30 seconds. 11-gauge bars require heavy bolt cutters and significant sustained effort — well past the 60-second burglar abandonment point. Higher-security bars (9-gauge and above) resist even heavy cutting tools.

What does gauge mean in steel?

Gauge is a legacy measurement system where a higher number means thinner steel. 11-gauge = 0.1196" / 3.04mm. 14-gauge = 0.0747" / 1.90mm. 16-gauge = 0.0598" / 1.52mm. For security bars, always confirm the actual millimeter thickness rather than relying on gauge alone, as different steel standards can vary.

Are aluminum window bars as strong as steel?

No. Aluminum has roughly one-third the yield strength of steel at equivalent thickness. An aluminum bar that looks identical to a steel bar will fail under significantly lower force. For security applications, steel is the only material that meets minimum resistance standards.

How do I know what gauge my window bars are?

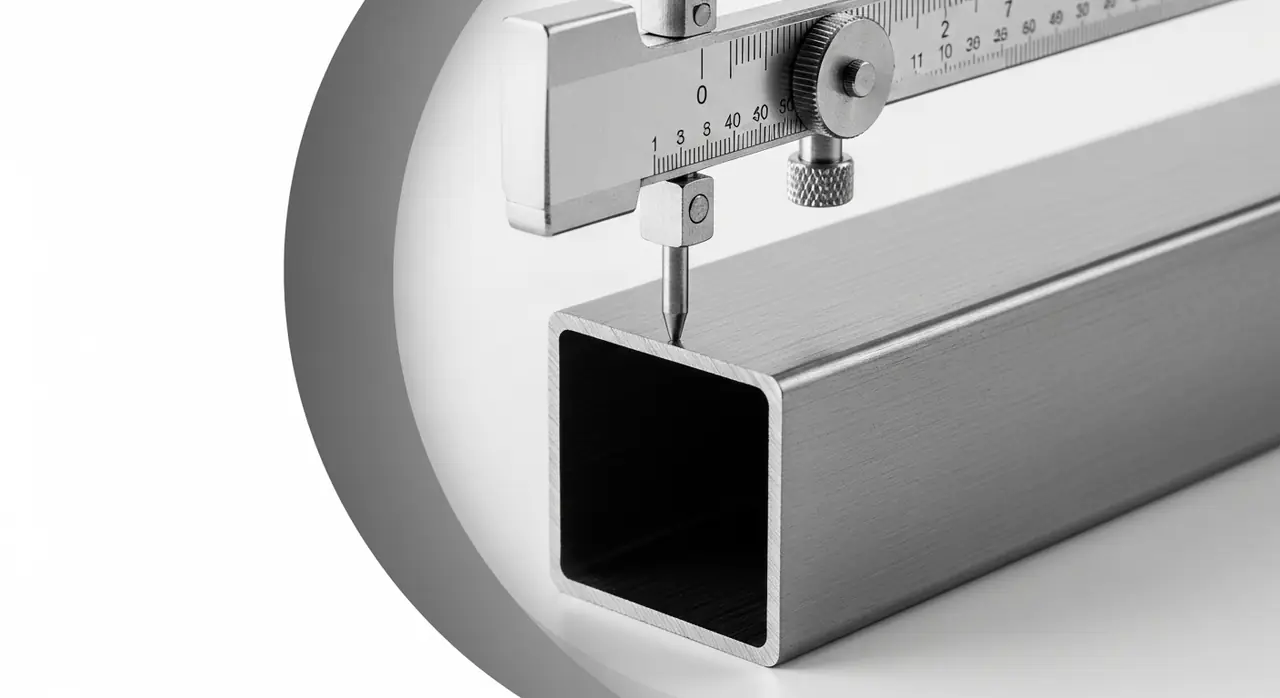

Ask the manufacturer for the steel gauge and thickness in millimeters. Reputable manufacturers list this in their product specs. If a company does not disclose gauge, assume it is inadequate. You can also use a digital caliper on the bar body to measure thickness directly.

Does the mounting hardware gauge matter?

Yes. Even a 11-gauge bar can fail at the mount if the bracket is thin. SWB uses 11-gauge steel for brackets as well as bar bodies, with 3/8" expansion anchors rated for 700 lbs shear load. A weak anchor is as dangerous as a weak bar.

What gauge do professional security consultants recommend?

IDA and ASIS physical security guidelines recommend a minimum of 11-gauge (3mm) steel for residential window bars. Commercial applications typically specify 9-gauge (3.76mm) or custom welded flat bar. For residential use, 11-gauge is the proven standard.

Technical Buying Guide · 2026

Window Bar Steel Gauge Guide

Direct answer: Lower gauge number = thicker steel = more force required to breach. 11-gauge (3mm) is the security standard. 16-gauge (1.6mm) — common in cheap bars — can be cut with bolt cutters in under 30 seconds. This single spec separates security bars from decorative ones.

Author
Marcus Reid · IDA Certified

Gauge-to-Thickness Reference Table

Gauge	Thickness (mm)	Bolt Cutter Cut Time	Security Rating
9-gauge	3.76mm	> 5 min (heavy cutters)	Commercial grade
11-gauge	3.04mm	> 2 min (heavy cutters)	✓ Residential standard
12-gauge	2.66mm	~60–90 sec	Marginal
14-gauge	1.90mm	< 45 sec	Inadequate
16-gauge	1.52mm	< 30 sec	Decorative only

The 60-Second Rule

Research on burglary behavior shows 85% of opportunistic intruders abandon any forced entry that takes more than 60 seconds. 11-gauge bars reliably push every breach attempt past that threshold. 16-gauge bars do not.

Why Manufacturers Hide Gauge

A 16-gauge bar costs 40–60% less to manufacture than an 11-gauge bar. Most online listings describe bars as "heavy-duty steel" without disclosing gauge. Red flags to watch for:

⚠

Product listing does not state gauge or mm thickness

⚠

Bar weight is suspiciously low (a genuine 11-gauge 36" bar weighs ~4 lbs)

⚠

Price is below $50 for a full-size bar — impossible at 11-gauge

⚠

"Powder-coated steel" without gauge specification

⚠

No force-resistance data or third-party testing cited

Beyond Gauge: What Else Affects Bar Strength

Bar Profile

Round vs flat vs rectangular bar. Rectangular (1.5" × 0.75") at 11-gauge provides superior resistance to lateral bending versus round bar at equivalent gauge.

Bracket Steel

Brackets must match bar gauge. A 16-gauge bracket on an 11-gauge bar creates a failure point at the mount.

Anchor System

3/8" concrete expansion anchors or structural wood anchors. Lag screws into drywall alone are inadequate — anchors must reach framing.

Weld Quality

Telescopic sections must be welded or mechanically locked at full extension. Slip-fit only sections can collapse under lateral force.
