Anti Theft Windows: How Security Bars Actually Work

May 13, 2026·11 min read·SWB Research Team
Security Window Bars

Anti Theft Windows: How Security Bars Actually Work

Anti theft window solutions range from film to steel bars — but only one type physically stops forced entry. Here's what actually works and why.

locksmith shop — security context

Why Standard Windows Are a Burglar's First Choice

street decorative jpeg — residential setting

According to FBI Uniform Crime Reporting data, approximately 59% of residential burglaries involve forcible entry, and windows — particularly ground-floor and basement windows — are among the most commonly exploited access points. A standard single-hung or double-hung window with a basic latch can be compromised in under 60 seconds using nothing more than a flathead screwdriver or a simple pry tool. The glass itself rarely deters a determined intruder; most will break it or simply lift a poorly secured sash out of its track.

What makes windows especially vulnerable is the combination of visibility and relative isolation. A burglar casing a property can often see directly into a home to assess valuables, identify whether anyone is present, and determine whether any physical deterrents exist. Windows on the side or rear of a structure — away from street view — are statistically more likely to be targeted precisely because forced entry goes unwitnessed.

The framing around residential windows adds another layer of weakness. Most builder-grade window frames are made from vinyl or aluminum extrusions that offer minimal resistance to lateral force. Even wood frames, while more robust, can be compromised if the locking hardware is substandard. This means that upgrading the lock alone is rarely sufficient — the weak point is often the frame-to-wall connection or the glass pane itself, not just the latch mechanism.

Understanding these vulnerabilities is the foundation of any serious anti theft window strategy. Deterrence through signage or alarm stickers has a marginal effect at best; physical hardening is what creates a genuine obstacle. Security professionals consistently recommend layered protection, but the physical barrier layer — meaning something a burglar must physically overcome with tools, time, and noise — is the most effective single upgrade a homeowner or renter can make.

What Makes a True Anti Theft Window Solution

triangular attic — residential setting

The term "anti theft window" covers a broad spectrum of products, and not all of them provide equivalent protection. Window security film, for example, holds broken glass together and can slow an intruder by a few seconds, but it does not prevent entry — it simply makes the mess of breaking glass more controlled. Window alarms and sensors are reactive, alerting after an intrusion has already begun. Reinforced glass and laminated glazing raise the cost and time of forced entry but stop short of creating an impassable barrier.

True anti theft window protection means installing a physical barrier that a burglar cannot quickly defeat without specialized tools, significant time, and substantial noise — all factors that dramatically increase the risk of detection and apprehension. Security grids for windows and security grates for windows made from steel fall into this category. When properly anchored to structural framing (not just drywall), a steel security bar or grille forces a would-be intruder to either abandon the entry point entirely or spend several minutes making considerable noise trying to defeat it.

The materials matter enormously. Tubular steel, particularly when formed into a telescoping design that tension-mounts between window frame jambs, provides both strength and flexibility of installation. A quality steel bar resists bending under lateral load far better than aluminum alternatives, and the telescoping mechanism allows a single product to fit a range of window widths without cutting or welding. This is the design principle behind SWB's product line, which spans adjustable-fit models suitable for windows ranging from roughly 27 inches to over 42 inches in width.

Anchoring method is equally critical. Surface-mounted products that screw into drywall or soft wood trim offer limited resistance because the anchor points themselves can fail before the bar does. Products that mount into window jambs — the structural timber surrounding the rough opening — distribute load into the wall framing and are significantly harder to defeat. Any anti theft window bar worth purchasing should specify its mounting substrate and load rating clearly in its product documentation.

Security Grids and Grates: Understanding the Difference

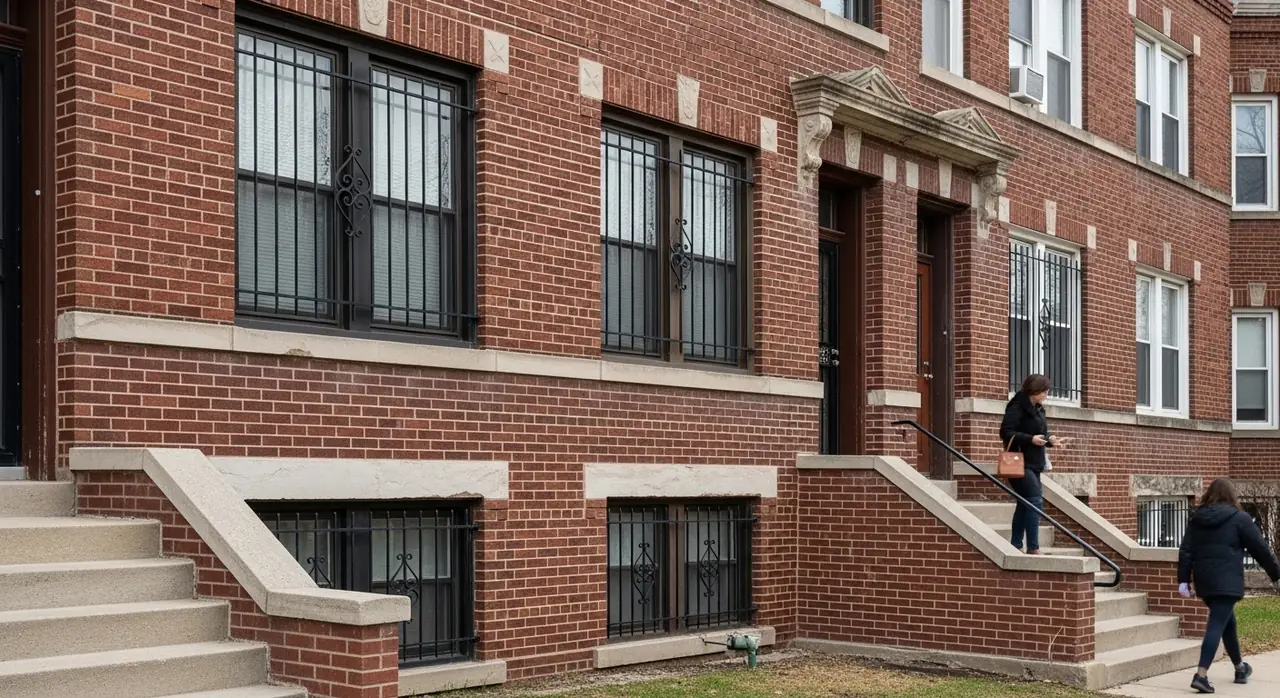

brick duplexes jpeg — security context

Consumers often encounter the terms security grids for windows, security grates for windows, and security window guards used interchangeably, but there are meaningful distinctions between product types. A security grate or grille is typically a full-panel welded steel grid that covers the entire window opening, permanently or semi-permanently anchored to the exterior or interior wall. These provide comprehensive coverage and are common in commercial settings, storefronts, and basement windows of urban properties. A security grate offers excellent protection but often requires professional installation and may be subject to local permit requirements.

Security grids for windows in a residential context more commonly refer to interior bar systems — either fixed or adjustable — that mount across the window opening without covering the full frame with welded mesh. These products offer comparable intrusion resistance for most residential threats while being more practical for renters, apartment dwellers, and homeowners who want to avoid permanent exterior modifications. A security grate on the exterior of a home can also raise aesthetic concerns and may conflict with HOA guidelines in some neighborhoods.

Security window guards is a broader category term that encompasses both grilles and individual bar systems. In New York City, for example, Local Law 50 and housing code Section 27-2043.1 require landlords to install window guards in apartments where children under 10 reside — and the term "window guard" in that regulatory context specifically refers to a tested, approved barrier device. This legislative history underscores the fact that window bar and grille products have a long, code-recognized role in residential safety.

For most US homeowners and renters, the practical choice comes down to interior adjustable bar systems versus exterior permanent grilles. Interior bars like those offered by SWB install without exterior wall penetrations, don't require permits in most jurisdictions, and can be repositioned or removed when moving. Exterior security grates offer slightly more deterrent visibility but at the cost of complexity, permanence, and often higher installation expense. The right choice depends on the specific property, tenancy situation, and local code environment.

SWB Product Models: Matching the Right Bar to Your Window

awning — residential setting

Security Window Bars offers three core models designed to address different window types, risk levels, and egress requirements. Understanding the differences between them is essential to selecting the right anti theft window solution for each opening in your home or business.

The Model A, starting at $99, is the flagship adjustable interior security bar designed for standard single and double-hung windows. It uses a telescoping steel construction that spans between the window's vertical jambs, tension-mounted with hardened steel pins that anchor into the structural framing. Model A is adjustable to fit a range of window widths and installs in under 30 minutes with basic hand tools. It is the appropriate choice for living room windows, kitchen windows, and other standard openings where forced entry is a concern but egress is not a primary consideration. You can view full specifications and ordering options on the /model-a/ product page.

The Model B is engineered for wider window openings and sliding glass windows where a single-span bar is insufficient. It features a heavier-gauge steel construction and an extended telescoping range, making it suitable for picture windows, wide bay openings, and commercial storefront windows where a standard bar would lack the rigidity to resist lateral loading across a longer span. Model B is the right specification when the window width exceeds the adjustment range of the Model A or when the window is a primary target due to its size or location. Details are available at /model-b/.

The Model A/EXIT addresses one of the most critical concerns with any window security bar installation: emergency egress. The NFPA Life Safety Code (NFPA 101) and the International Residential Code (IRC Section R310) both mandate that sleeping rooms have at least one emergency escape and rescue opening — typically a window — that can be opened from the inside without tools or special knowledge. A standard fixed security bar installed on a bedroom window can create a life-threatening code violation. The Model A/EXIT is specifically designed to release quickly from the inside in an emergency while maintaining its anti-intrusion function from the exterior. It is the only appropriate choice for bedroom windows, and SWB strongly recommends it for any sleeping area application. Full product information is at /model-a-exit/.

Installation Best Practices for Maximum Security

installation bartrunc jpeg — professional installation

Even the strongest steel security bar provides limited protection if it is installed incorrectly. The most common installation error is anchoring into soft materials — drywall, vinyl window trim, or aluminum extrusion — rather than into the structural wood jamb or masonry surrounding the window opening. When a bar is anchored into drywall, a strong kick or pry force can pull the mounting hardware clean through the wall material, defeating the bar in seconds. Always locate the structural framing members around the window opening before drilling and use anchor hardware specified by the manufacturer for the substrate type.

For wood-framed windows, the mounting pins or screws should penetrate a minimum of 1.5 inches into solid lumber — the actual structural jamb, header, or rough framing, not the decorative casing. For masonry openings (concrete block, brick, or poured concrete), use sleeve anchors or wedge anchors rated for the load the bar is designed to resist. SWB's installation documentation specifies anchor type, depth, and torque requirements for each model and substrate combination, and following these specifications is what validates the bar's rated performance.

Window orientation also affects installation decisions. A security bar mounted horizontally across a vertical sliding window resists upward force (lifting the sash) and lateral pry force effectively, but the bar's position relative to the sash travel must be set so it cannot be defeated by partially opening the window and rotating or displacing the bar. SWB's telescoping design uses a tension-lock mechanism that maintains compression against the jambs regardless of minor sash movement, preventing this defeat method.

For double-hung windows, consider whether you want to allow the window to open for ventilation while the bar remains in place. Both Model A and Model A/EXIT can be positioned to allow the lower sash to open partially — typically 4 inches or less — while the bar prevents the opening from reaching an exploitable size. This ventilation-with-security configuration is particularly popular in climates where window air circulation is desirable during moderate weather. The key dimension to remember: NFPA and building codes generally consider an opening of 4 inches or less insufficient for adult entry, making this a viable security compromise for ventilation purposes.

Before installing any anti theft window bar or security grate, US homeowners and renters need to understand the legal and code landscape that governs these products. The International Residential Code, adopted in whole or modified form by most US states, establishes minimum egress window requirements for sleeping rooms. IRC Section R310 specifies that emergency escape and rescue openings must have a minimum net clear opening of 5.7 square feet (5.0 square feet for ground floor), a minimum net clear height of 24 inches, and a minimum net clear width of 20 inches. Any security bar or grate that would prevent an occupant from achieving these dimensions during an emergency is a code violation in a bedroom application — and potentially a serious life safety hazard.

This is not a theoretical concern. Fire departments across the country have documented cases where fixed window bars have trapped occupants during residential fires, leading to fatalities. Several states and municipalities have enacted specific legislation in response, requiring that any window bar in a sleeping room be equipped with a quick-release mechanism operable from inside without tools. New York, California, and Chicago's municipal code are among the jurisdictions with explicit requirements. Regardless of local code specifics, the use of Model A/EXIT for any bedroom window is the responsible and legally defensible choice in every US jurisdiction.

For renters, installation rights vary by lease and state law. Most lease agreements prohibit permanent modifications without landlord consent, but many landlords will approve interior security bars because they improve the property's security without exterior alteration. Renters should request written permission before installation and document the pre-installation condition of the window jambs. Because SWB's products are tension-mounted and reversible — the mounting holes in the jamb are small and easily patched — they are generally more landlord-friendly than welded exterior grilles or security grates that require exterior wall penetrations.

Business owners face an additional layer of consideration: commercial building codes (IBC rather than IRC) and occupancy-specific requirements that may govern egress window size, security grate specifications, and fire department access. In some jurisdictions, exterior security grates on commercial properties require key-operated quick-release hardware accessible to fire personnel. SWB's commercial customers should consult with their local Authority Having Jurisdiction (AHJ) before finalizing any security grate installation on a commercial occupancy.

Frequently Asked Questions

Can I install anti theft window bars in a rental apartment?

Yes, in most cases, but you should obtain written permission from your landlord before installation. SWB's telescoping models mount with small anchor holes into the window jamb and are fully removable, making them far more lease-compatible than permanent exterior grilles. Document the window condition before and after, and patch the small anchor holes when you move out.

Are security window bars required to have a quick-release for emergencies?

In sleeping rooms, yes — and this is true regardless of whether your local code explicitly states it. The IRC and NFPA 101 both require sleeping room windows to serve as emergency egress openings, and a fixed bar that prevents egress creates a life-safety violation. SWB's Model A/EXIT is specifically engineered with an interior quick-release mechanism to meet this requirement; it should be used on every bedroom window.

What's the difference between a security grate and an adjustable security bar?

A security grate is typically a welded steel mesh panel covering the entire window opening, often permanently anchored to the exterior wall — common in commercial settings and basements. Adjustable security bars like SWB's Model A and Model B are interior-mounted, tension-fitted, and removable, making them more practical for most residential applications. Both provide genuine intrusion resistance; the right choice depends on your installation situation, tenancy type, and aesthetic preferences.

Securing your windows against forced entry is one of the highest-return investments a homeowner or renter can make in physical security. The data is clear: windows are a primary entry point for burglars, standard window hardware provides minimal resistance, and a properly installed steel security bar changes the risk calculus fundamentally — turning a quick, quiet entry into a slow, noisy one that most intruders will abandon. Security Window Bars offers a purpose-built product line to address every residential and light commercial window situation: the Model A starting at $99 for standard windows, the Model B for wider and sliding openings, and the Model A/EXIT for any bedroom or egress-critical window. Each model is designed to install without professional help, anchor into structural framing for genuine load resistance, and comply with the egress and safety requirements that protect your household. Browse the full SWB product line to find the right fit for your windows — and your peace of mind.
