👊 The 6-Inch Vulnerability

You have a $2,000 solid wood door. You have a $300 smart lock. But right in the center, or running down the side, is a piece of tempered glass that can be shattered in 0.5 seconds with a spark plug ceramic.

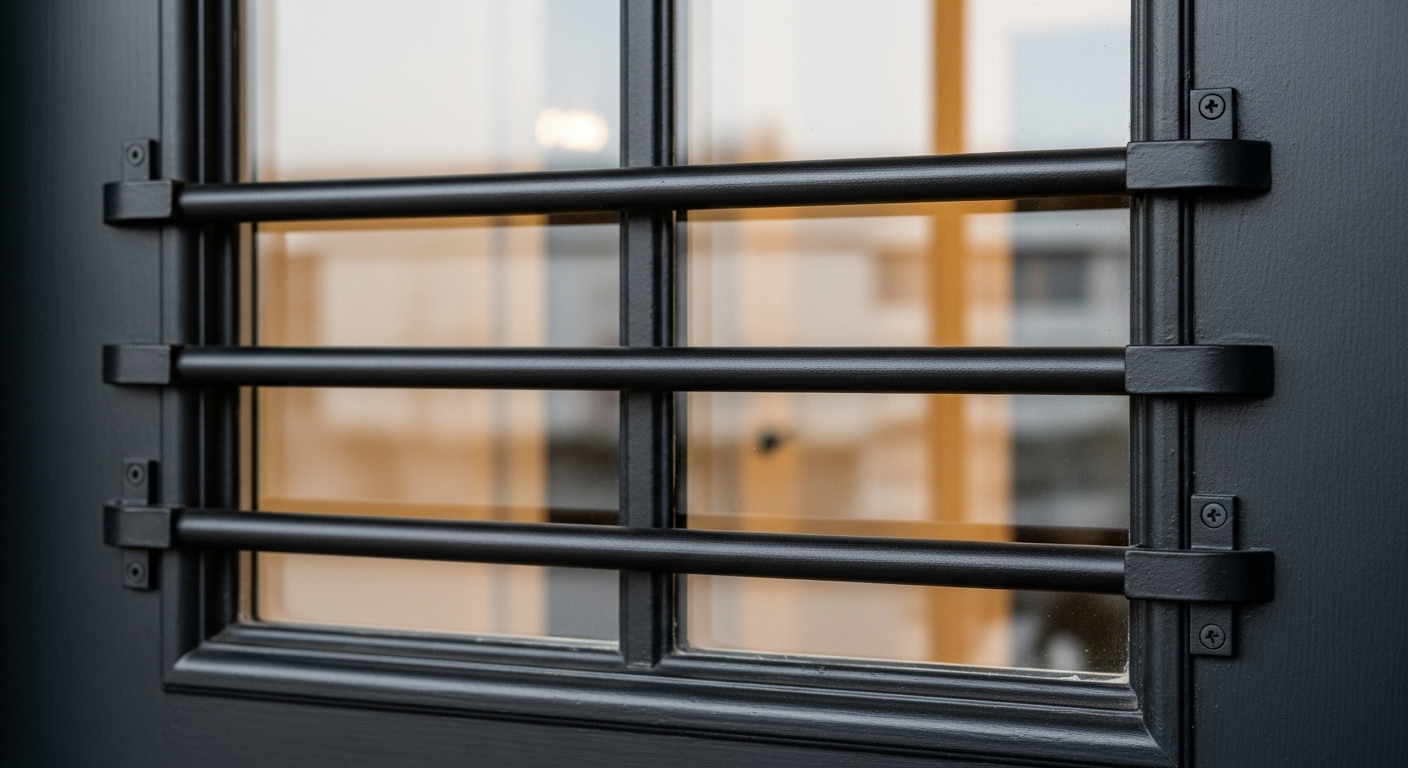

This is the "Vision Lite" Paradox. We want light in our entryways, but glass is structurally zero. The specific keyword here is "Security Bars for Door Window" (singular). We aren't talking about barring up a giant bay window. We are talking about the surgical application of a Micro-Grille over that specific 6x20 or 22x36 inch glass pane.

Why? Because of the Thumb-Turn. Fire codes mandate that you must be able to unlock your door from the inside without a key. If an intruder breaks the glass, reaches in, and turns that thumb-turn, your door is open. The bars are there to stop the arm, not the body.

📐 Reach Dynamics & Spacing

To design effective bars for a door window, we must understand human anatomy.

• The Wrist Limit: An average human wrist is about 2.5 inches wide.
• The Forearm Reach: An adult male can reach approximately 24-28 inches through a hole.
• The Protocol: If the glass is within 40 inches of the lock (which it always is on a door), the security grille MUST have spacing tighter than 5 inches. Standard 6-inch architectural spacing is insufficient here; a slender arm can snake through.

SWB Standard: We recommend a dense mesh or a pattern with max 3.5-inch gaps for door applications.

⚙️ Hardware Specifications

Installing bars on a door is different from a wall. The door swings, slams, and vibrates.

📊 2026 Security Data

Data derived from the Comprehensive Market Analysis of the US Security Window Bar Industry indicates a shift in burglary tactics.

• Shift to Finesse: Kicking down a door is loud (110 dB). Breaking a small pane of glass and turning a lock is quieter and faster.
• 34% Increase: In "Reach-Through" entries in suburban areas with high-end doors.
• Smart Lock Fail: 60% of homeowners believe a smart lock protects them. It does not. If the interior thumb-turn is manual (as most are), the glass is the bypass.

⚖️ Comparison: Film vs. Grilles

Many users ask: "Why not just use safety film?"

🔧 Installation Protocol

Step 1: Measure the "Visible Glass". Do not measure the frame. Measure the actual glass daylight opening.
Step 2: Add Overlap. Your bars need to mount into the solid wood/steel of the door, not the glazing bead. Add 2 inches to width and height.
Step 3: Drill Pilot Holes. If it's a metal door, use a titanium bit.
Step 4: Sealant. Apply a dab of silicone to the screw holes to prevent water ingress into the door core (crucial for wood doors).

❓ Advanced FAQ

Q: Can I use bars on a sliding patio door window?

A: No. Bars mounted on the glass of a slider will hit the frame when you try to open the door. For sliders, you need a "Charlie Bar" or a track-blocker. (See our guide on Sliding Doors).

Q: My door has an oval window. Can I bar it?

A: Yes, but rectangular bars on an oval window look terrible. We recommend custom wrought-iron inserts that replace the glass molding entirely, or a custom-shaped exterior grille.

Q: Is this code compliant?

A: Generally, yes. The front door is an egress point, but as long as the bars are on the glass and do not cover the handle or require a key to remove, they do not impede egress. The door opens normally.

🏁 Seal the Envelope

A chain is only as strong as its weakest link. In your home security chain, the vision lite on your front door is a paper link. Security Bars for Door Windows turn that paper into steel.

Don't let a $5 piece of glass defeat a $1,000 door. Retrofit today.
